TP3F 4-point AES-72 patchbay

TP3F 4-point AES-72 patchbay

$139.95 USD
$139.95 USD
Sale Sold out

A 4-point AES-72 patchbay you can drop into any rack.

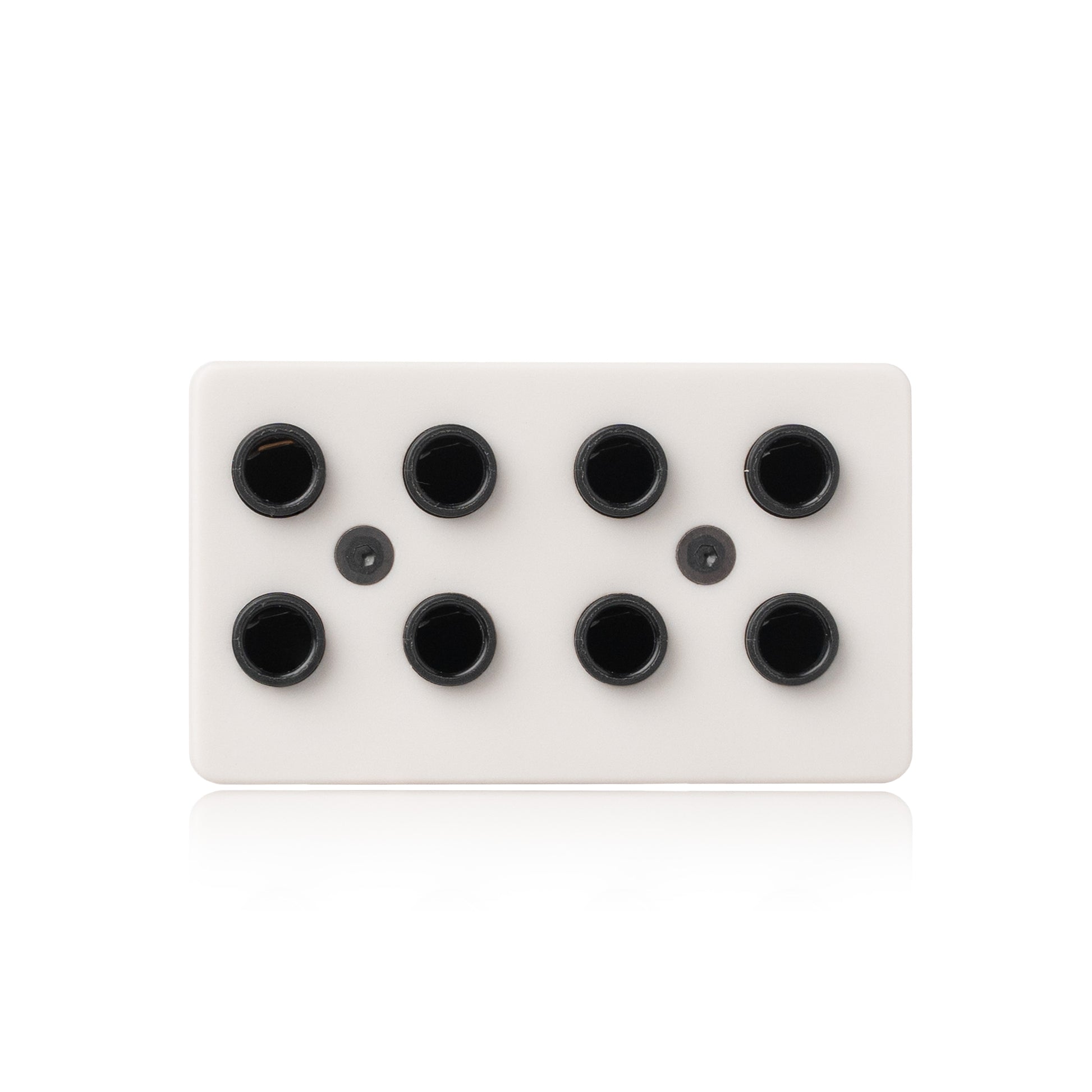

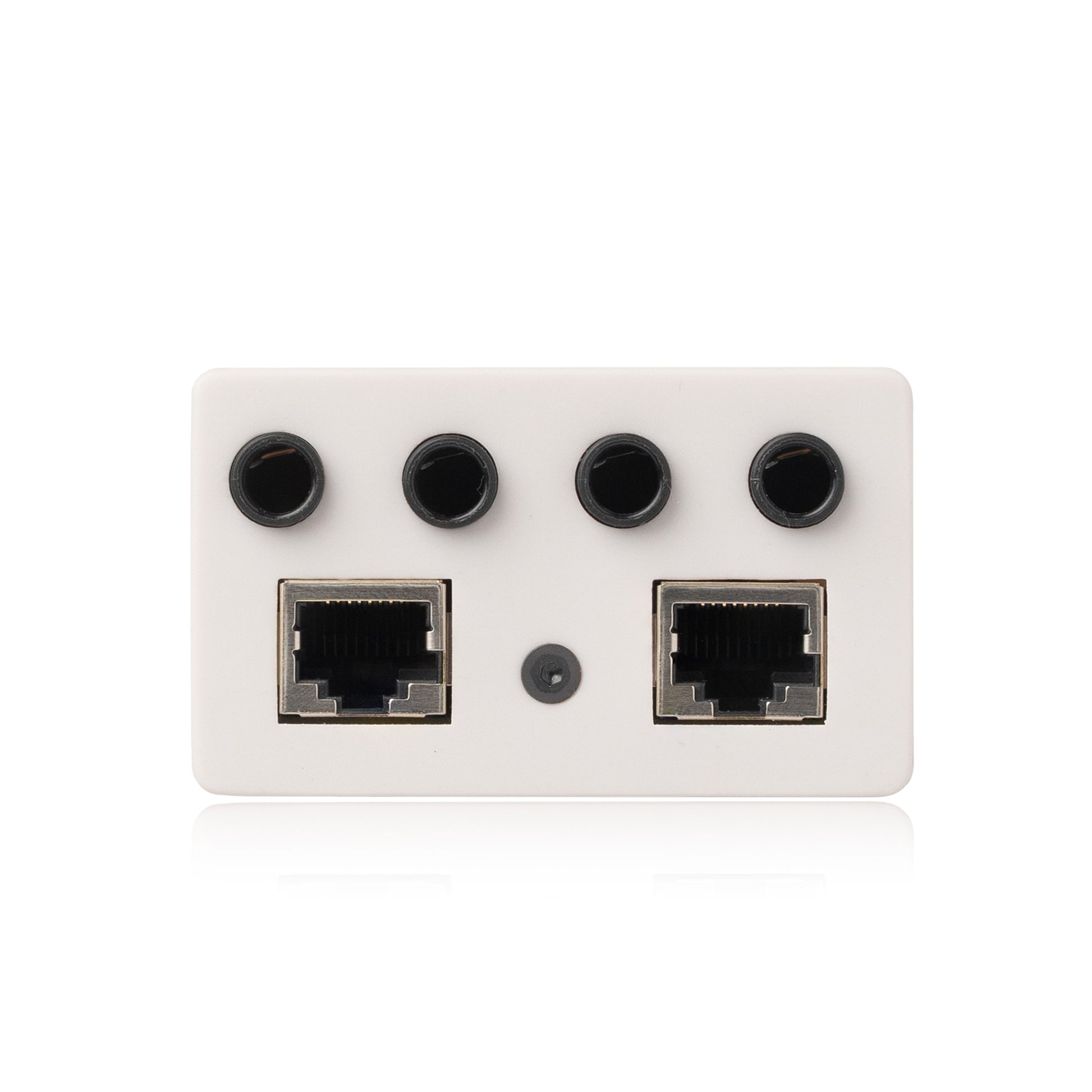

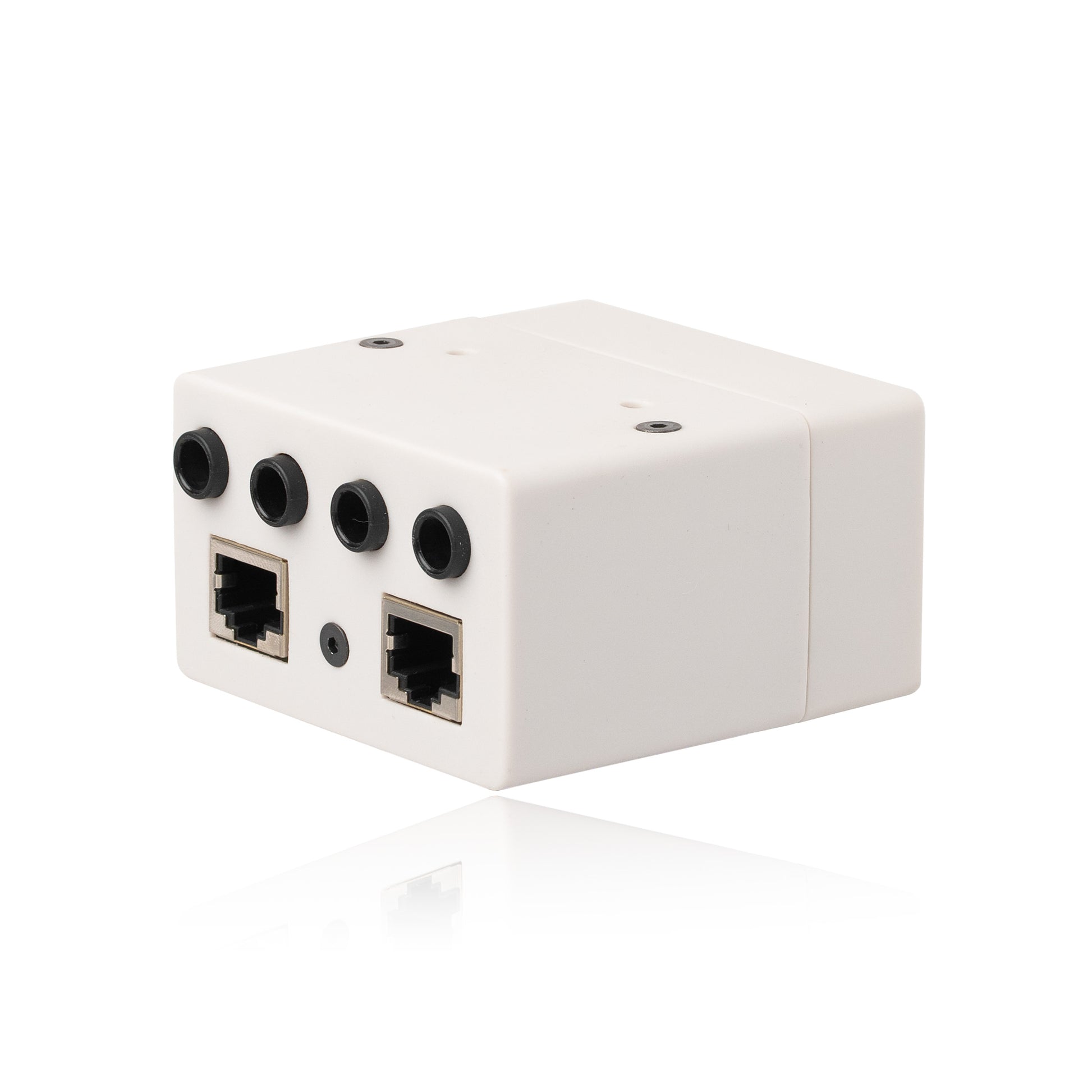

The TP3F is a 4-point patchbay slice with RJ-45 trunk connections. Fully-normalled, with 1/4" jacks configurable as either inputs or outputs. Also useful as an RJ-45 to 1/4" adapter.

Mount six units to an HF100 tray for a full 24-point patchbay in 1U. Also mounts to the HF101.

Use it for

  • Building a studio patchbay over standard Cat cable, without DB25 looms or soldering
  • Patching a keyboard rig into a rack without a permanent install
  • Replacing TRS snakes between desk and rack
View full details

Frequently Asked Questions

  • The TP3F has 4 patch points on the front, each carrying a full AES-72 connection (4 balanced channels per point). That's 16 channels of analog audio in a compact patchbay format.

  • Yes. Use TFP8/TRP8 adapters to bring TRS signals into the AES-72 world, and the TP3F handles the patching from there. Many studios run a hybrid setup during transition.

  • Yes. Every Ashton Research product is covered by a one-year warranty against defects in materials and workmanship.

    If something goes wrong, contact us. No forms, no return authorization numbers, no hoops. We'll make it right.

    We build this gear to last well beyond the warranty period — but if it doesn't, that's on us.
